Vixen Telescope Dovetail Slide Bar PG

Vixen Telescope Dovetail Slide Bar PG

Regular price $71.99 USD
Regular price Sale price $71.99 USD
Sale Sold out

Description

Attaching a DSLR camera or other instruments to the AP mount

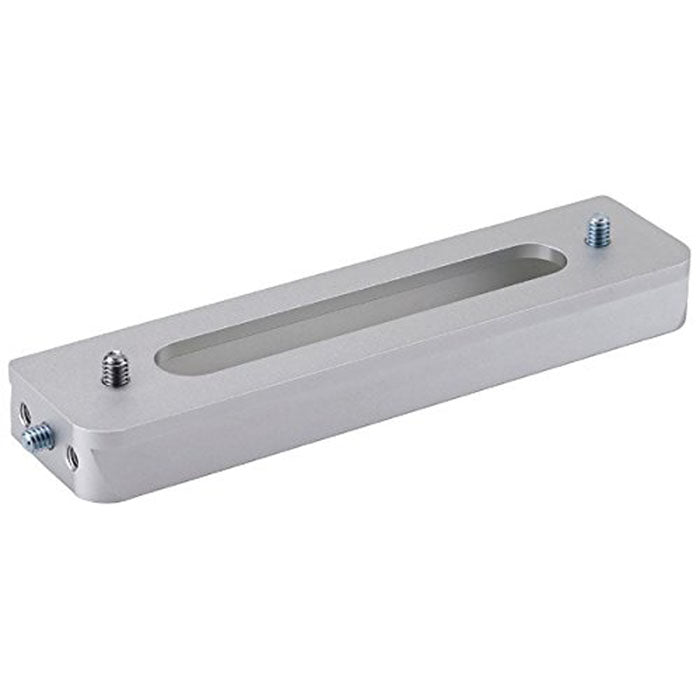

The dovetail slide bar PG is used to attach a DSLR camera or other instruments with 1/4” screw to the AP mount. It can be mounted on all the Vixen mount heads with the Vixen-style dovetail mounting unit (SX2, SXD2 and PORTA II). The elongated sight slot on the dovetail slide bar PG avoids disturbing the field of view of the polar scope when it is used.

Specs

Width of the dovetail slide bar Vixen standard (44mm), with a sight slot for polar scope
Numbers of 1/4” screws for attachment 4 pieces
Numbers of M6 screw sockets 4 pieces
Size 182mm x 44mm x 20mm
Weight 200g
