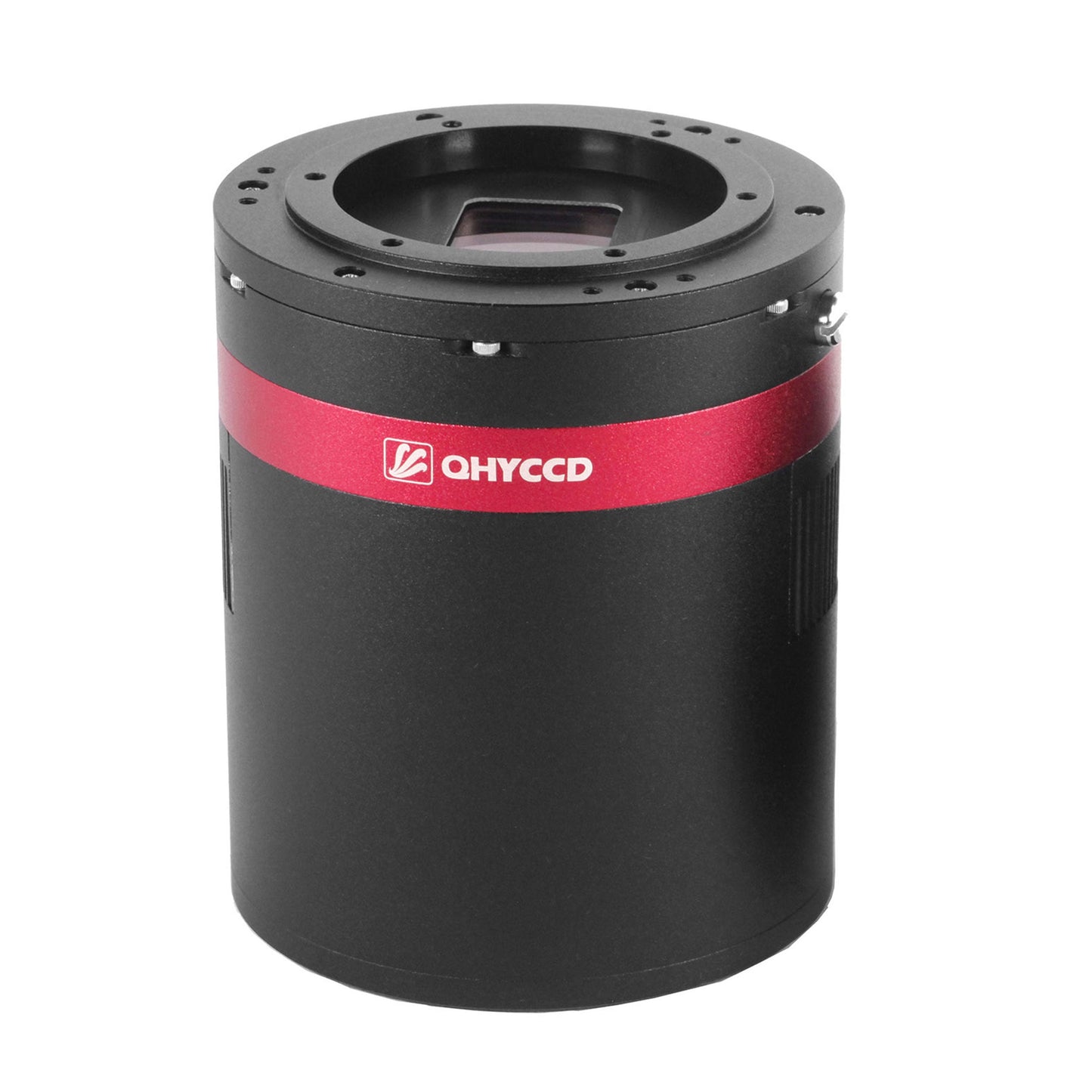

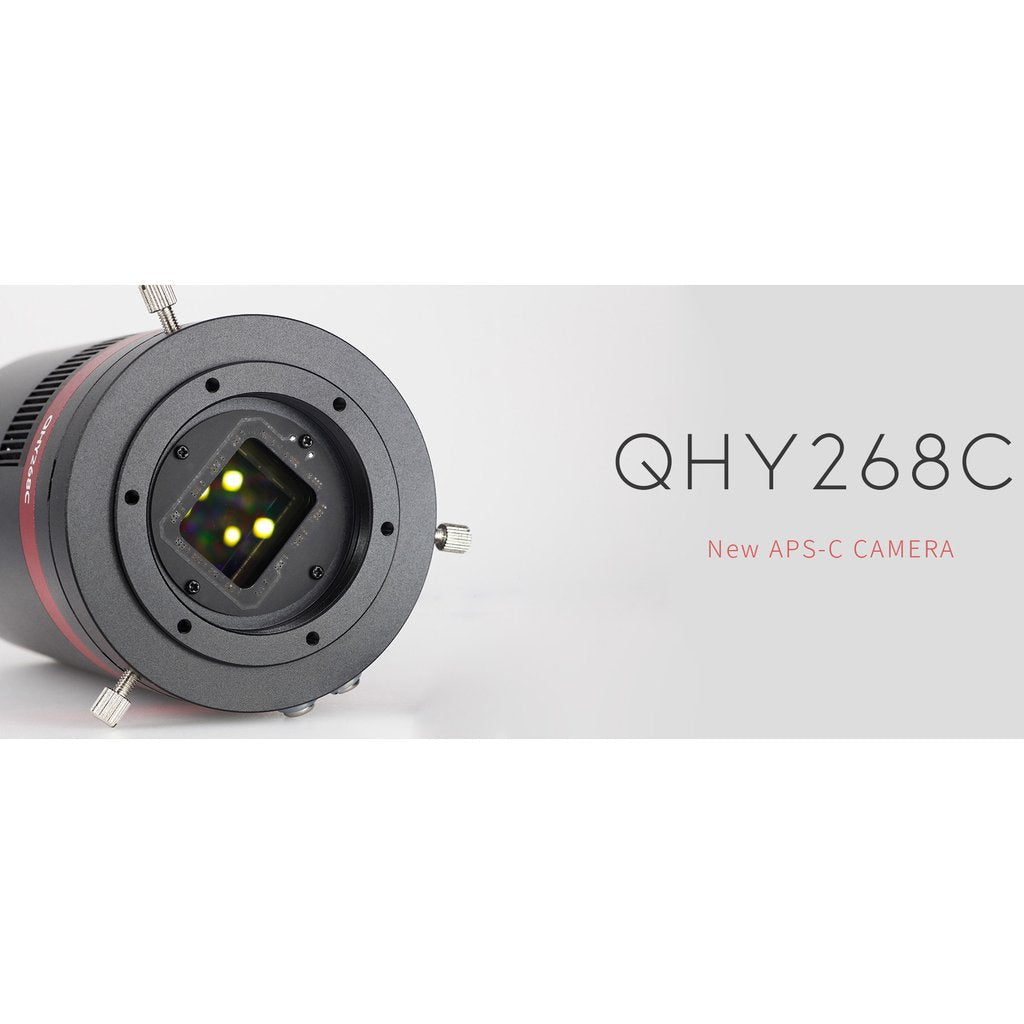

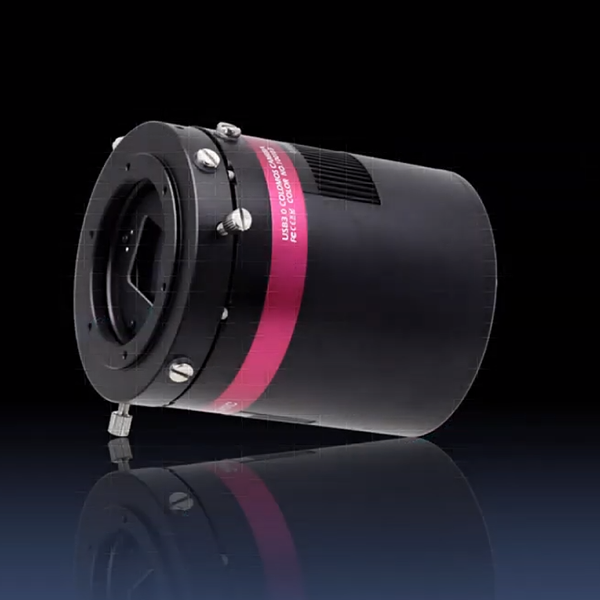

The QHY268 Photographic Cooled Color CMOS Camera has a back-illuminated 26 megapixel APS-C sensor with 16-bit ADC and 3.76 um pixel size.

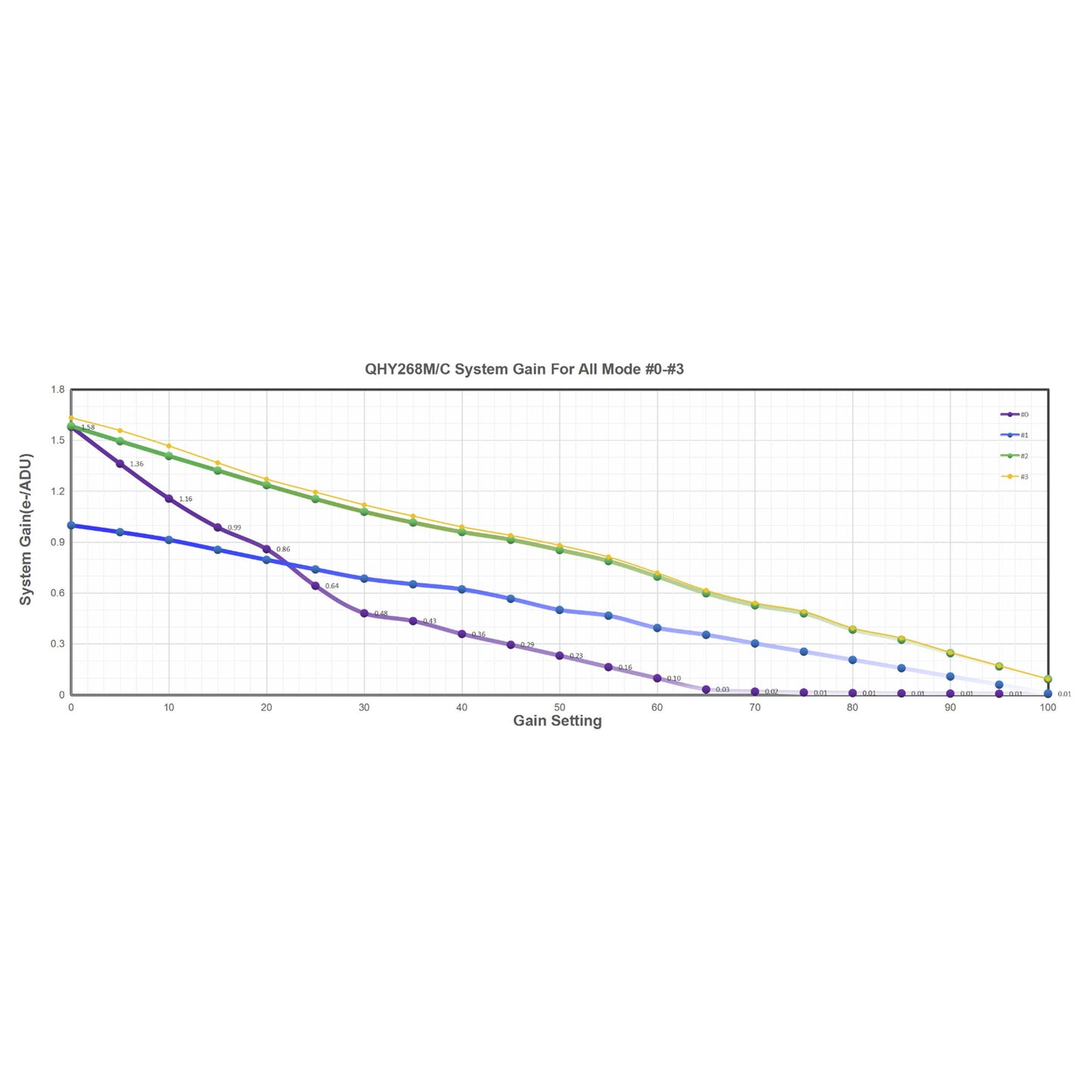

NATIVE 16-BIT ADC 65536 LEVELS The QHY268C is the CMOS camera with native 16-bit A/D on-chip. The output is real 16-bits with 65536 levels. To compare with the 12-bit and 14-bit ADC. The 16-bit ADC can get high sample resolution, system gain will be less than 1e/ADU. No sample error noise and low noise.

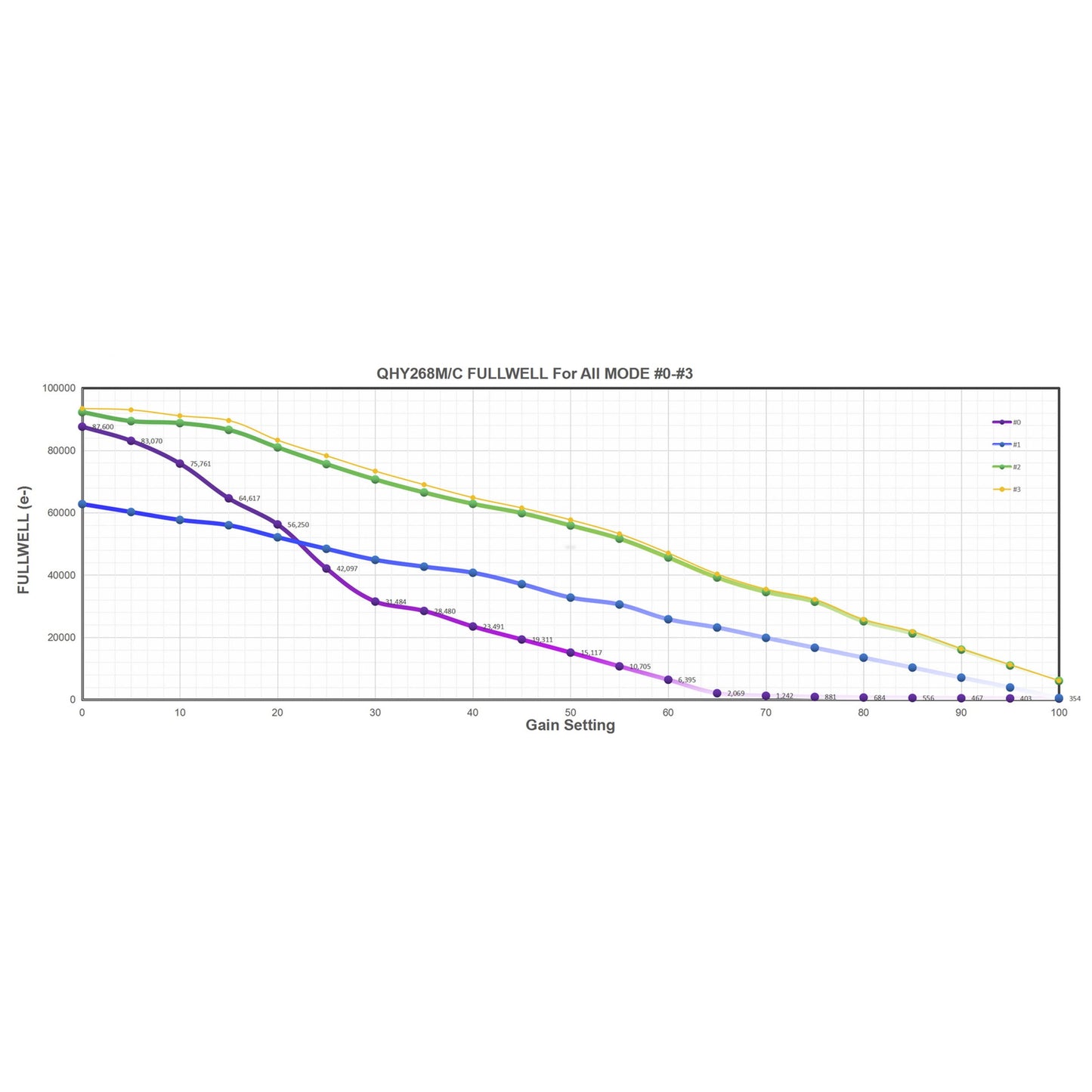

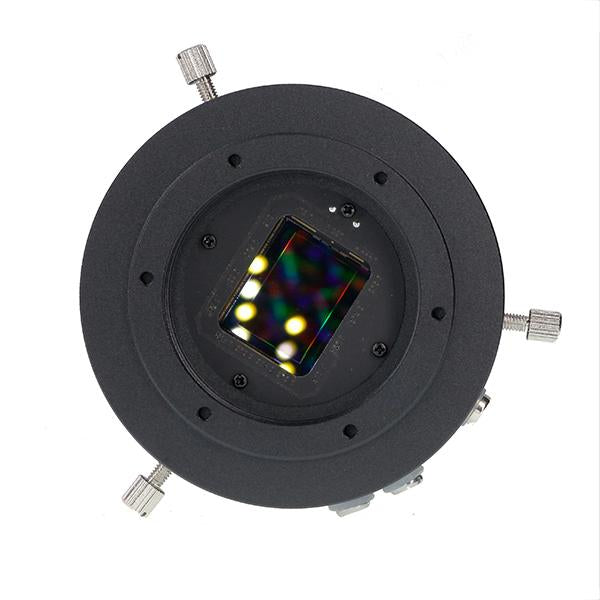

GREAT FULL WELL: 51KE- AT 3.76 UM One benefit of the back-illuminated CMOS structure is improved full well capacity. This is particularly helpful for sensors with small pixels. Even with unbinned 3.76 um pixels the QHY268C has a full well capacity of 50ke-

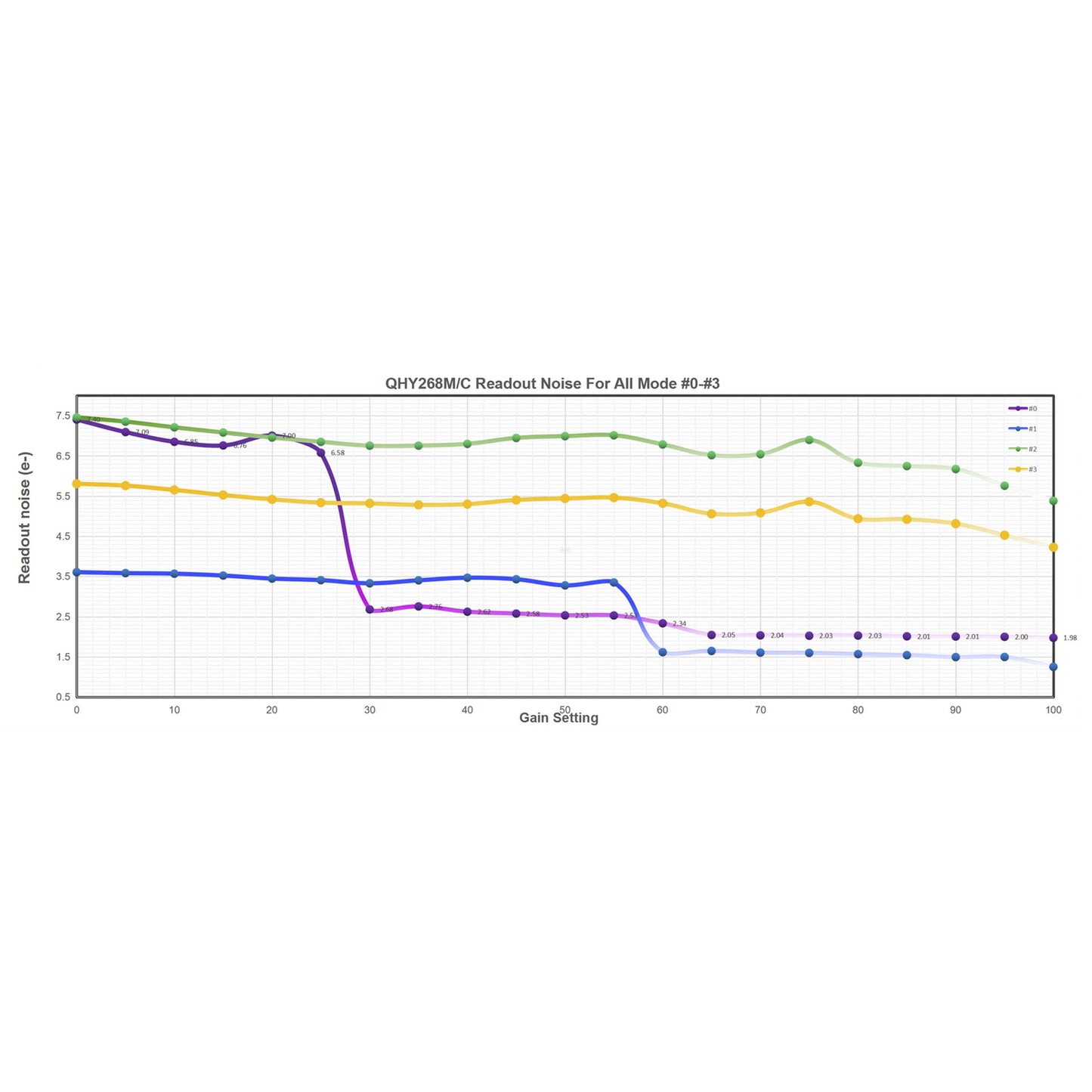

ULTRA LOW READ NOISE With a 1 to 4 e read noise, the QHY268C has only one electron of read noise at high gain and 15/fps high readout speed. One electron of read noise means the camera can achieve a SNR>3 at only 4 to 6 photons. This is perfect performance when conditions are photon limited, i.e., short exposures, narrow band imaging, etc., making this large area sensor ideal for sky surveys and time domain astronomy. BACK-ILLUMINATED: ELECTRIC ROLLING SHUTTER AND LOW DARK CURRENT This back-illuminated Scientific CMOS camera has extremely low dark current using SONY's Exmor BSI CMOS technology. In general, the fan-blade mechanical shutter will be broken if it is used 200,000 times or so, and in some specific cases it is easy to fail to switch on or off. The advantage of electronic shutter over mechanical shutter is high-reliability and stability when the observatory shoots a large number of pictures. The electronic shutter is a relatively perfect choice for the observatory.

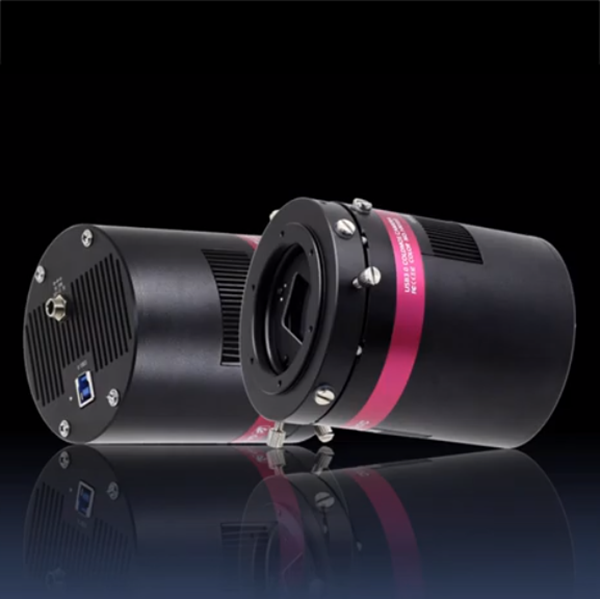

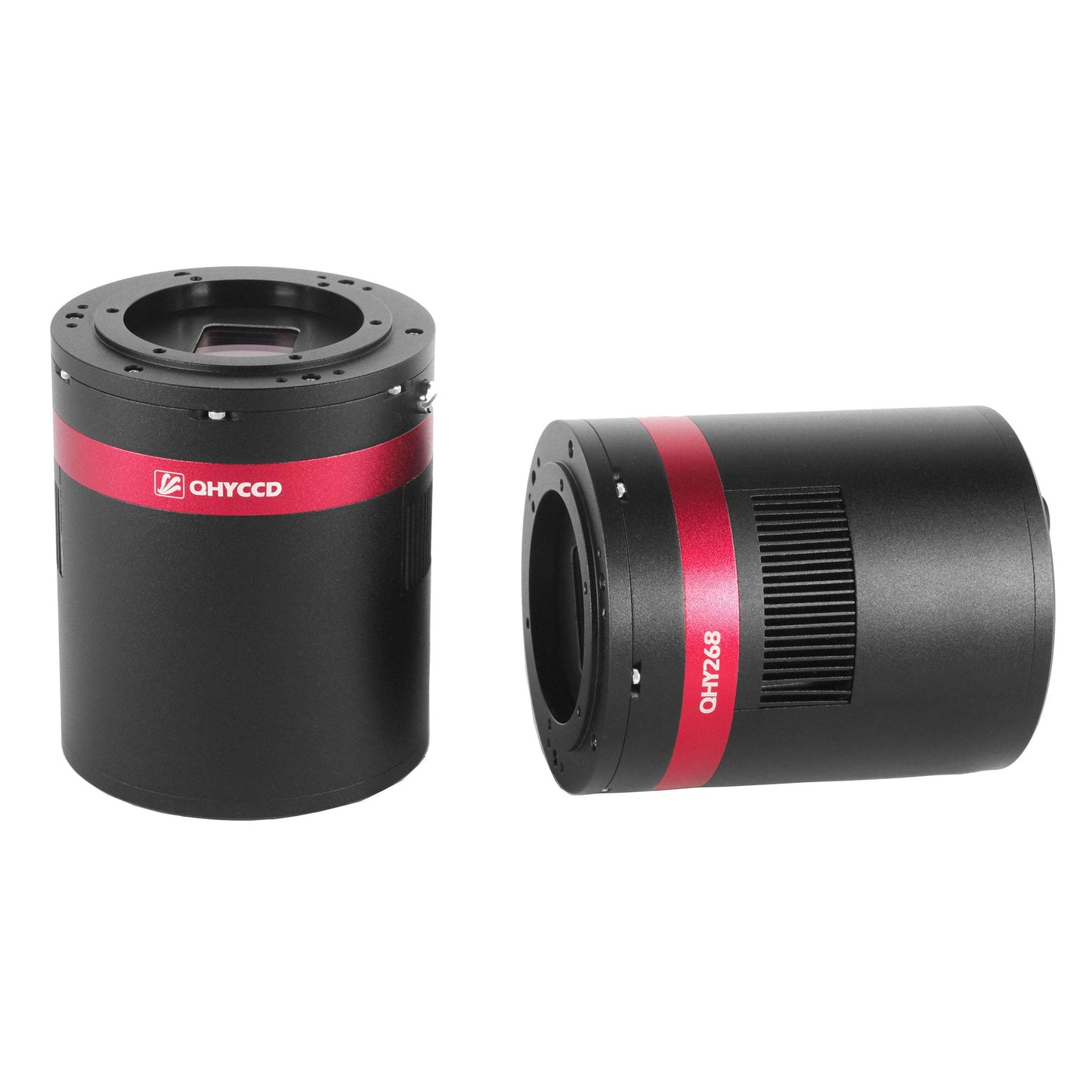

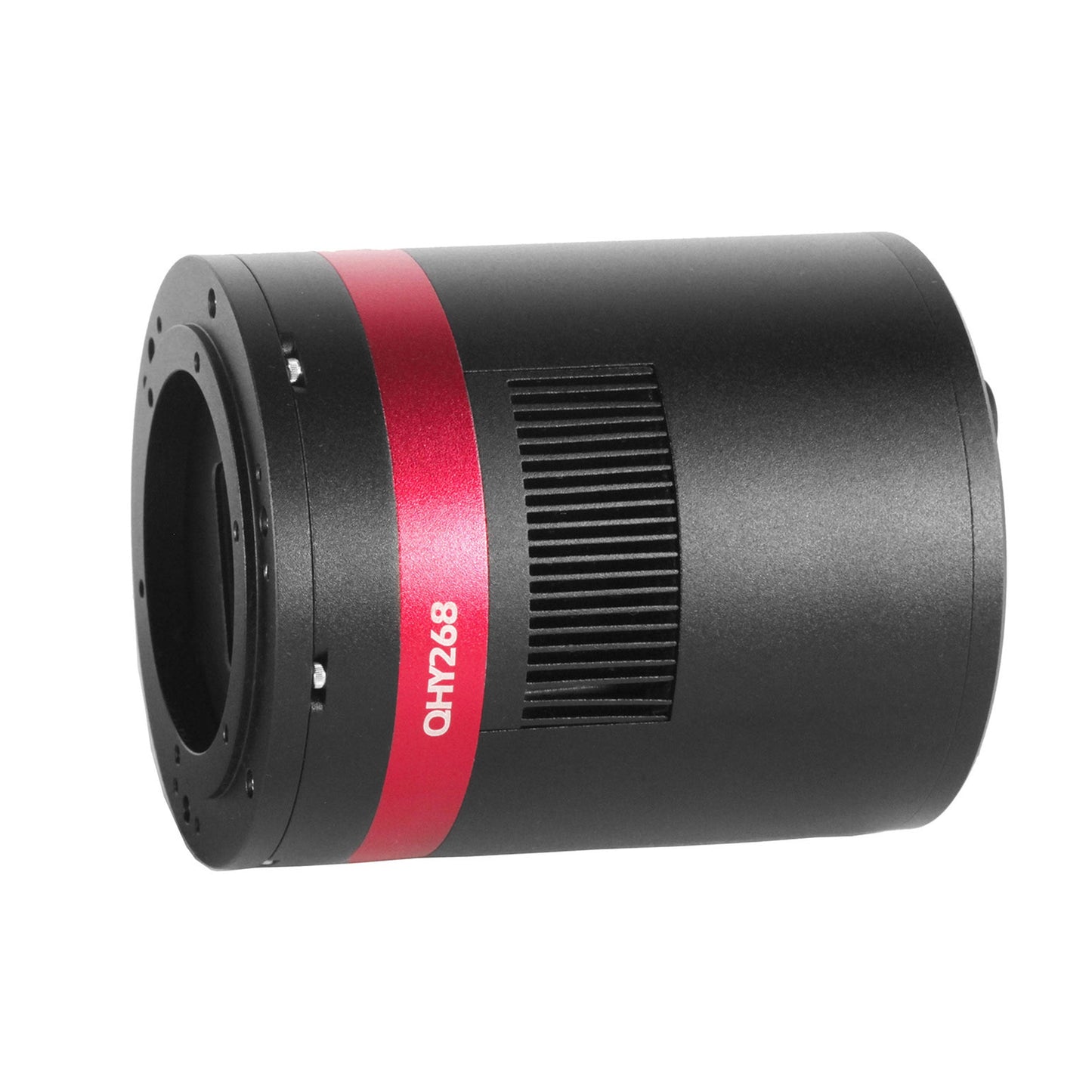

BEST MATCH FOR A HYPERSTAR OR RASA SYSTEM The round camera case design of QHY268C and the imager size is your best match for Hyperstar or RASA systems. USB3.0 Using the USB3.0 interface you transfer at 6/fps. TEC COOLING The QHY268C has regulated TEC Cooling with 2-stage TE Cooler.
Specs
Model Number
QHY268M
Color or Monochrome Camera?
Monochrome
Cooled or Uncooled
Cooled
ADC
16 bit
Anti Dew Heater
Yes
Back Focus
17.5 mm
Buffer
2 GB DDR3
Camera Connection
Female M54x.75
Delta T
35C

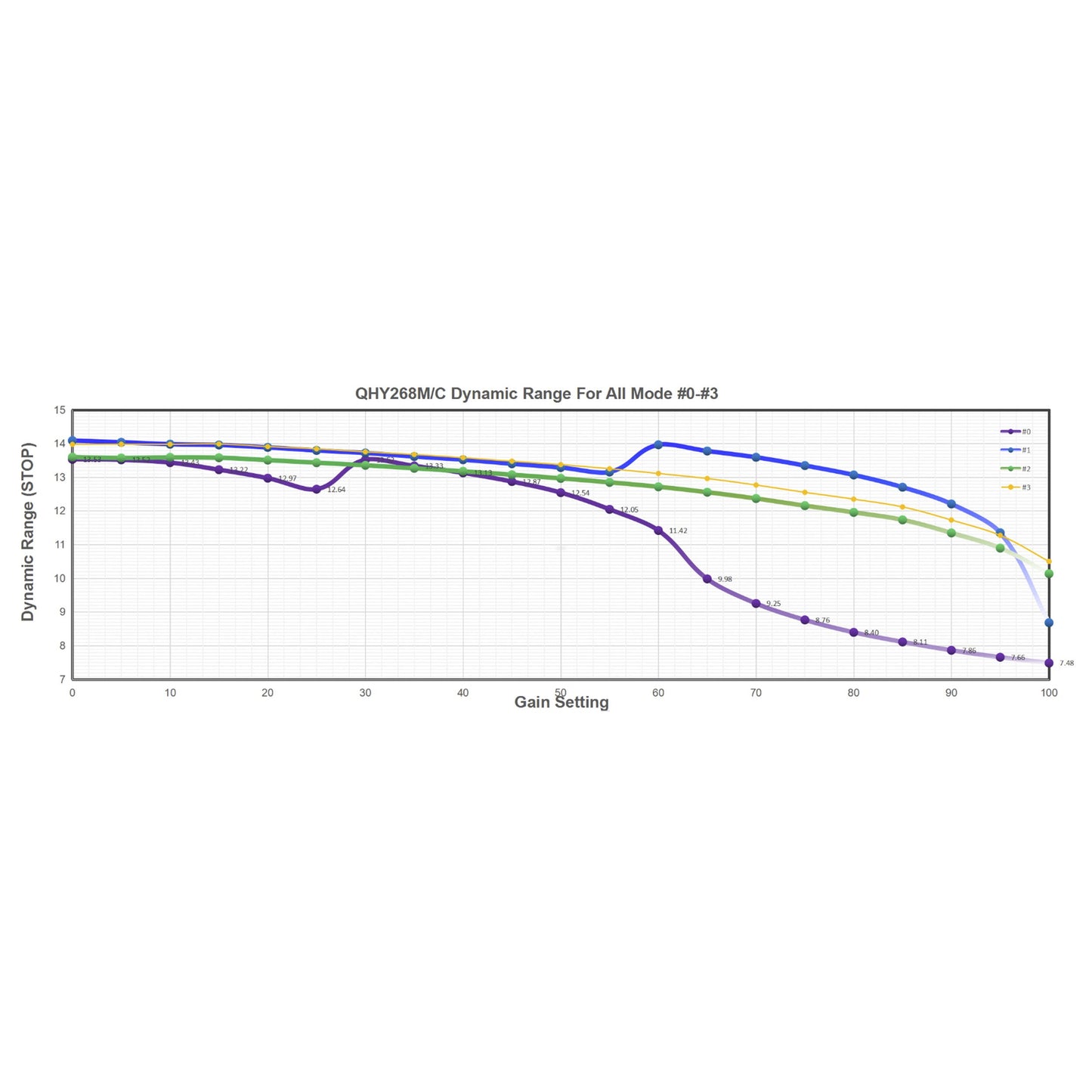

Dynamic Range
14.1 Stops
Full Rez Frame Rate
6.8fps
Full Well
51ke
Max Frame Rate
50fps
Mega Pixels
26.4 MP
Peak QE
78%
Pixel Array
6280 x 4210
Pixel Size
3.76 microns
PS
3 Microns or Smaller
Read Noise
3e
Sensor Diagonal
28.4 mm
Sensor Size
C Format
Computer Interface
USB 3.0
Camera Weight (lb.)
1.4
