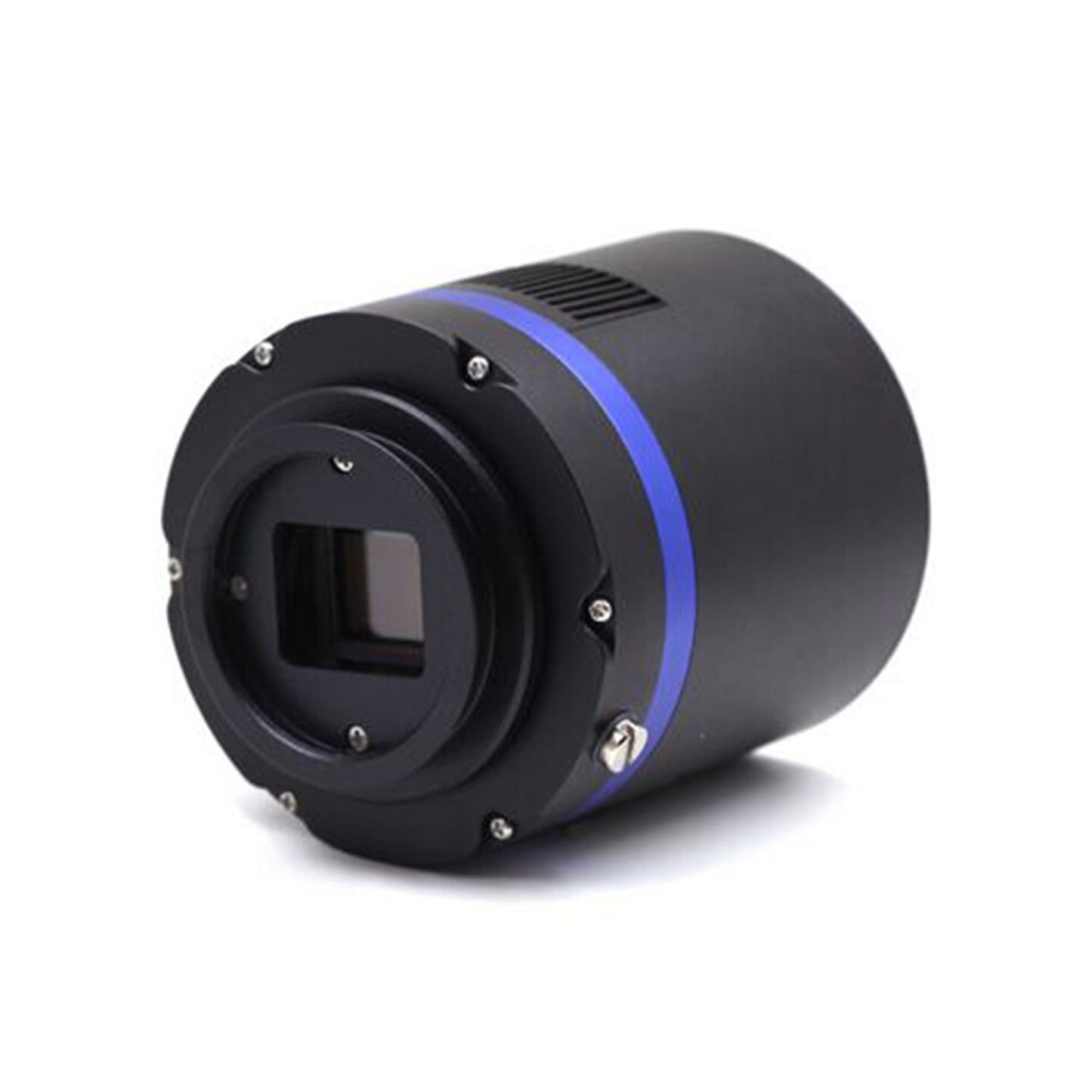

QHY183C Color Cooled CMOS Camera

QHY183C Color Cooled CMOS Camera

Regular price $699.00 USD
Regular price Sale price $699.00 USD
Sale Sold out

Description

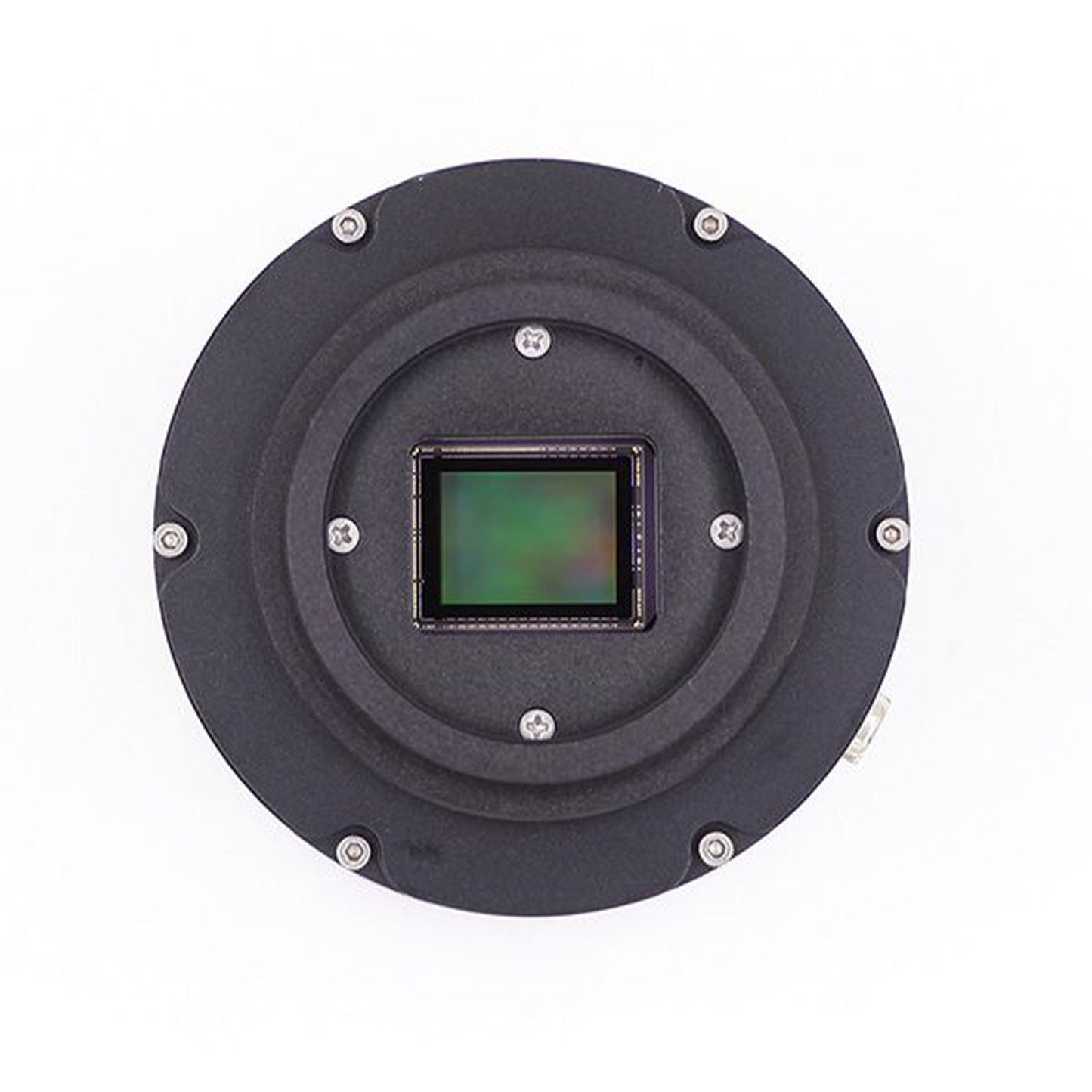

The QHY183C camera uses the back-illuminated Exmor R Sony IMX183 20MP sensor for higher sensitivity and quantum efficiency than traditional front-illuminated designs. This color sensor has an active array of 5544 x 3694 pixels that are 2.4um in size, with readout noise as low as one (1) electron! This CMOS astrophotography camera is capable of 4K HD (25 FPS) video output and full resolution real time output at 15 frames per second.

The QHY183C camera has a two-stage TEC cooling and temperature regulation system that can cool your camera down to as low as -40C below ambient. QHY has also incorporated anti-dew technology into the QHY183. The CMOS chamber is fully sealed, and includes a silicon gel tube socket as well as a heater to help keep both your sensor and the sensor window dry and fog-free, even on humid nights.

A built-in 128MB DDRII image buffer provides a safeguard in this CMOS astrophotography camera against unexpected drops in data transmission. A frame buffer avoids lost frames during USB transfer by storing image data in the camera itself until it can be safely transmitted. Buffering will also make sure your video runs more smoothly when using a slower computer that cannot always handle high speed data well.

All semiconductors produce a small amount of light when powered up, causing brighter spots in the corners of the sensor where the high gain amplifiers are housed. Amplifier glow is most noticeable during long exposures taken with CMOS astrophotography cameras. The QHY183C camera has an anti-amp light control circuit to reduce amplifier glow significantly.

Specs

Sensor Sony IMX183 Back Illuminated Sensor
Optical Format Typical 1-inch
Sensor Size 13.3mm x 8.9mm
Pixel Size Magnitude 2.4um x 2.4um
Effective Pixels 5544 x 3694, 20 Megapixels
Readout Noise low 1e@ high gain 2.7e @gain 0
Readout Type w/out Dew Shield Progressive Scan
Shutter Electronic Shutter
Exposure Time 50us-3600 sec
Frame Rate 15FPS@20Mp, 25FPS@4K HD, 5FPS@12Mp/td>
Frame Rate 15FPS@20Mp, 25FPS@4K HD, 5FPS@12Mp
Full Well 15000-16000e
Computer USB3.0
Mechanical M54/0.75 female thread
Power 30W @ 100% TEC, 13W @ 50%TEC

Warranty

Non-EXPLORE SCIENTIFIC Branded/Third-Party Products Click Here

Manual

To download printable PDF manual Click Here
