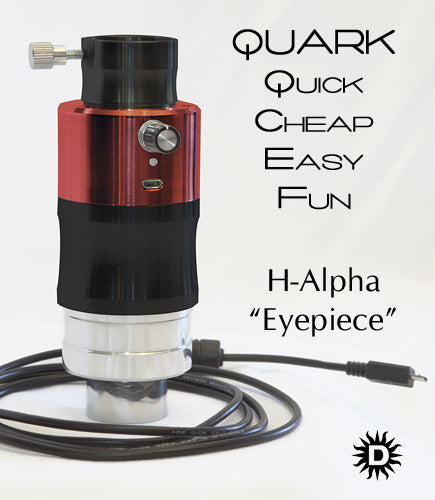

Daystar Instruments QUARK* Hydrogen Alpha "Eyepiece"

Daystar Instruments QUARK* Hydrogen Alpha "Eyepiece"

Regular price $1,295.00 USD
Regular price Sale price $1,295.00 USD
Sale Sold out
Style

This new, All-In-One design marries high quality components of a telecentric barlow, adapters, snouts and Daystar hydrogen alpha filter into one simple assembly. Through design efficiency and optimization, now users can enjoy the known high quality optics of DayStar* at an affordable price.

Quark* is available in a choice of "prominence" or "chromosphere"
~ Choose either for the same price of
$1,295.00

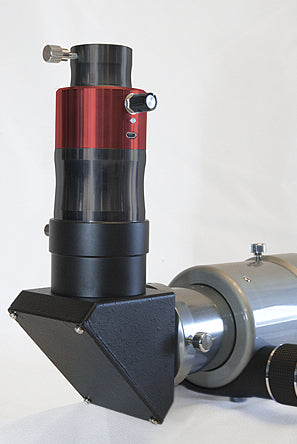

For use on refractors of F/4 to F/8**, the user needn't worry about configurations. Just insert in your diagonal, add an eyepiece and view.

The patent pending QUARK* contains a custom Daystar Instruments 4.2X telecentric barlow lens fully optimized in coatings and optical design specifically for the Hydrogen Alpha wavelength. This highly specialized telecentric lens offers superior field flatness.

Exact filter bandpass will vary based on final telescope application, so QUARK* assemblies are qualified to show either prominence or surface (chromosphere).  No specific FWHM bandpass is designated.  Now observers can buy a filter based on their desired observing goals instead of their budget.  Choose fore WIDER prominences with a little surface or MORE surface contrast (Chromosphere) and narrower prominences. Both are available for the same low price!

The fully optimized design eliminates the need for any adapters.  It's all combined in one lightweight eyepiece sized device. The new, compact design configuration eliminates unnecessary components, weight and associated costs. We even reduced power consumption, so the Quark* can now operate all day off a small, palm-sized optional battery pack. Baffles have been added to increase contrast and AR coatings are optimized for the 656nm wavelength.

*The QUARK* assembly is a product of DayStar Instruments, using DayStar Filters' Fabry Perot etalon technology.
** QUARK Filters may be used at shorter and longer focal ratios than recommended. F-ratios of F/9 and higher will offer a dimmer visual view and may only be bright enough for photographic applications. F-ratios of less than F/4 will be brighter, but also widen the effective FWHM bandpass performance of the QUARK filter
