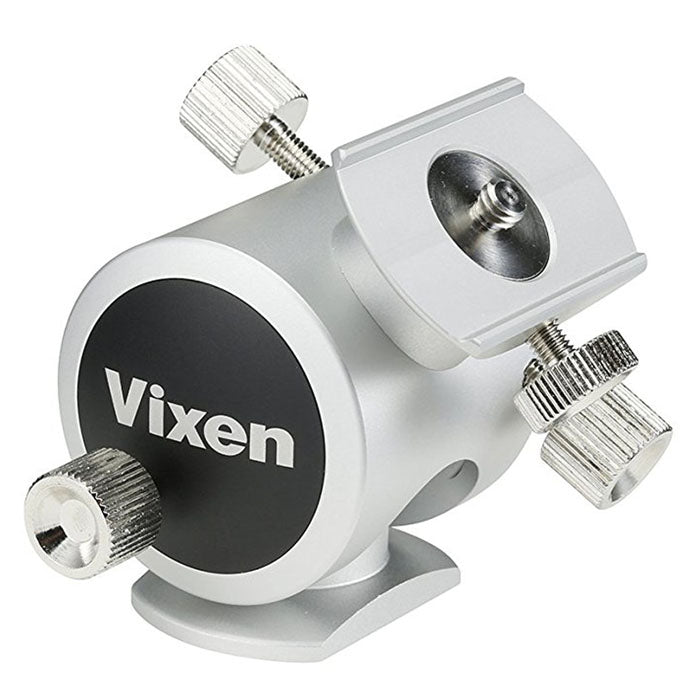

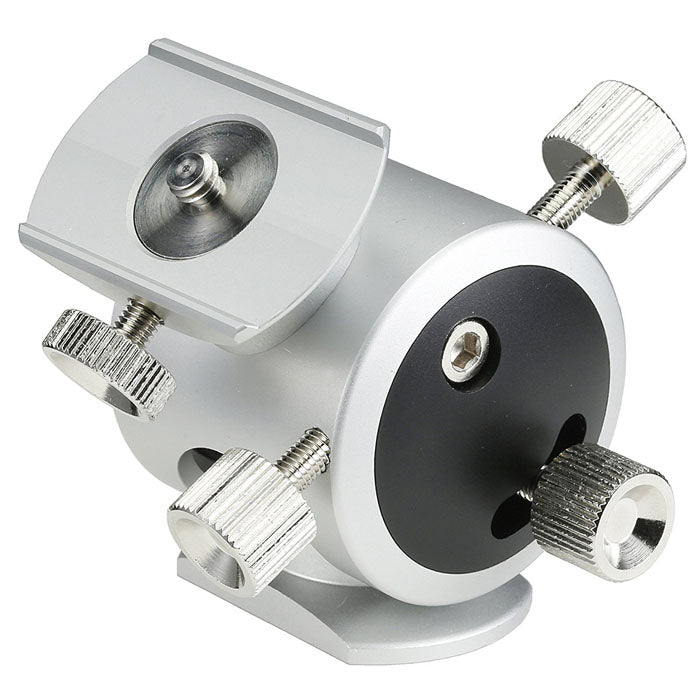

Vixen Portable Equatorial Mount Compact Mount POLARIE Fine Adjustment Unit
Vixen Portable Equatorial Mount Compact Mount POLARIE Fine Adjustment Unit
Features
- Powerful anchoring with a dedicated panhead shape
- Double screw type fine adjustment screw for secured attachment
- Slow motion switchover function for overseas use
- Weight: 300g
Description
For precision polar axis alignment with POLARIE star tracker
The accessory used when setting up the POLARIE star tracker. For precise alignment of polar axis using the polar scope, it is necessary to move the POLARIE minutely. The POLARIE fine adjustment unit facilitates fine adjustment vertically and horizontally. This unit is compatible not only with the POLARIE star tracker but also with the AP polar axis bracket, and used by installing between the camera tripod.
Powerful anchoring with a dedicated panhead shape
The unit employs a connecting shape that securely fits with the bottom of the POLARIE star tracker and the AP polar axis bracket, simply attachable by one screw.
Double screw type fine adjustment screw for secured attachment
The unit adopts double screw system which operates by loosening one screw while tightening the other. Due to the structure sandwiched by screws from both side, fine motion and strong fixation can be realized.
Slow motion switchover function for overseas use
Depending on the altitude where is used or equipment mounted, tilt angle of the polar axis can be changed in three steps, which makes it possible to use in a wide range from 0 to 85 degrees anywhere.

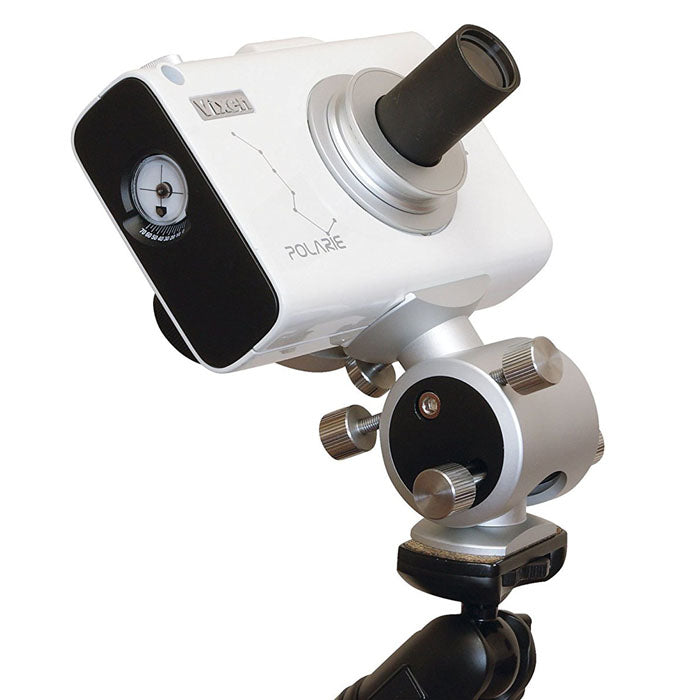

Example application

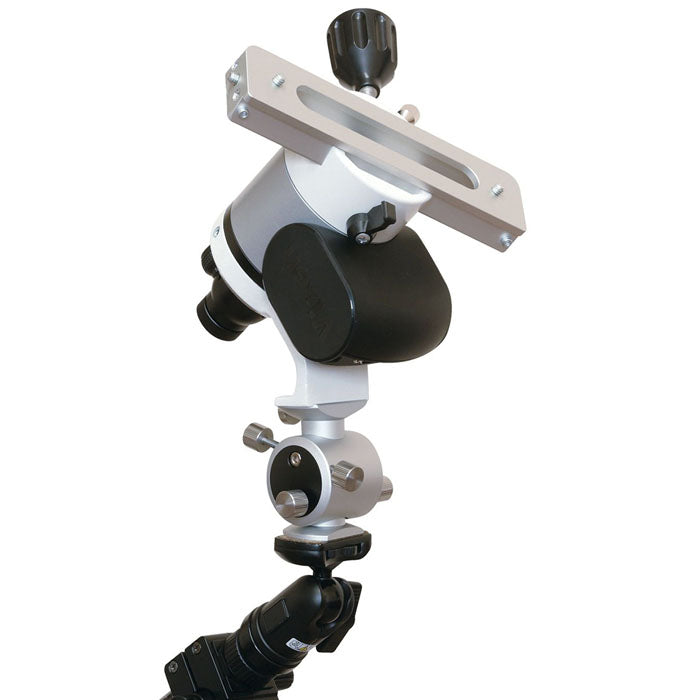

This can be used not only with the POLARIE star tracker, but also with the AP polar axis bracket.
Specs
Manual
Warranty
Vixen warranties its products to be free from initial defects in materials and workmanship for a specified period based on part type:
Vixen Electronic Parts: Limited One Year Warranty
Vixen Mechanical Parts: Limited Two Year Warranty
